❖Features

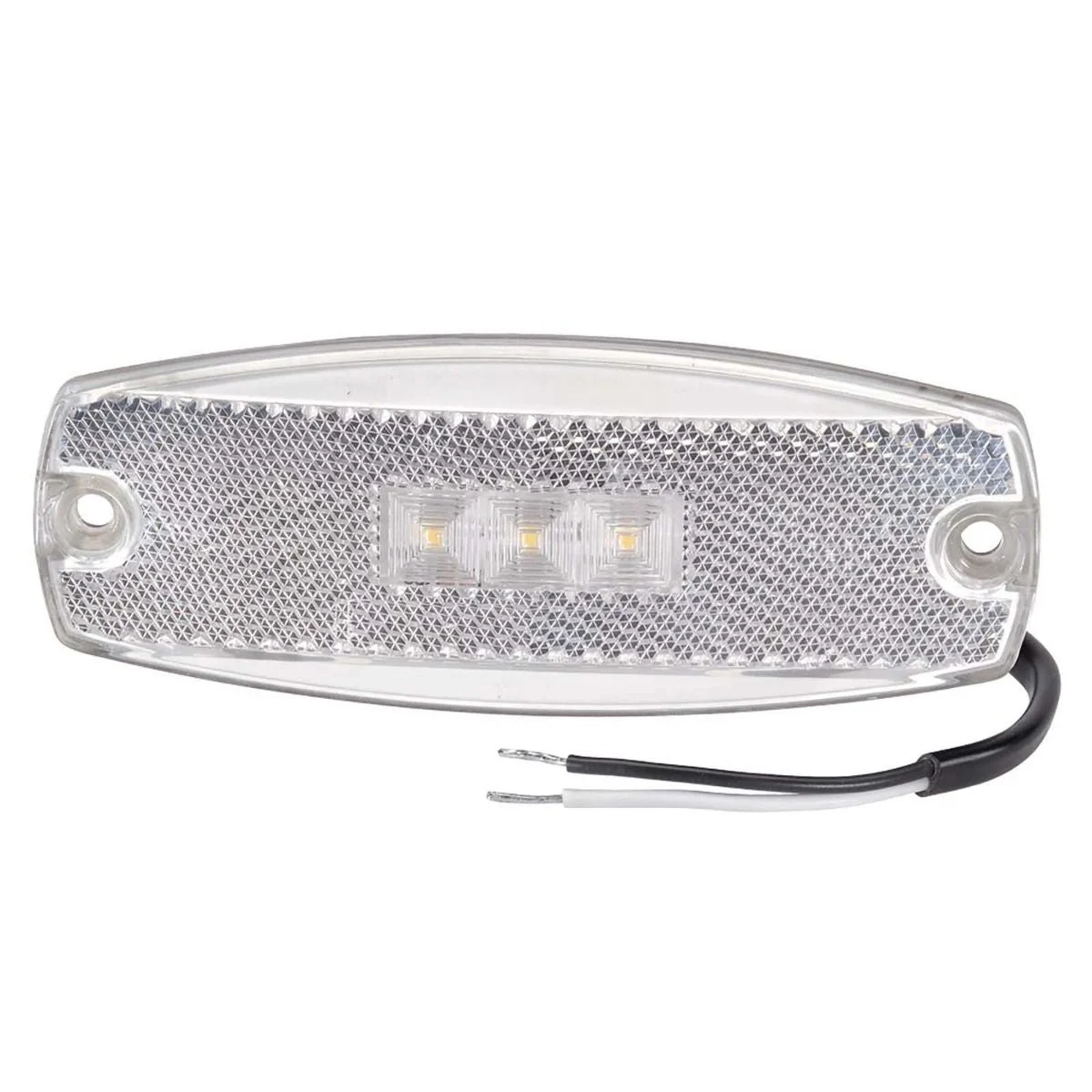

92 These ultra slim modern L.E.D markers can be flush mounted with a standard13mm (1/2”) hole required for cable entry. The lamps have a total thickness ofjust 9.5mm and incorporate “E” and ADR approved retro reflectors that negatethe need for extra reflectors if fitted in accordance with ADR 13 installationrequirements.
10-33 volt, Multi-voltage
Virtually unbreakable polycarbonate lens
ADR Approved
Fully sealed with 0.5m of cable (IP67)
|
❖Specifications
Brand | Narva
Model | 91704
Input Voltage Range | 9-33 Volt
Current Draw | 0.10A
LEDs | Rated to 100,000 hours of L.E.
IP Rating | IP66 and IP68
Size | 115 x 44mm
Candela Rating | 40
ADR | 47/00 IB-E9-02.6272, 49/00 R1-E9-02.6292
Weight | 0.05kg
Shipping Dimensions(mm) | 160 x 120 x 40
Manufacturers Warranty | 1 year
