❖Features

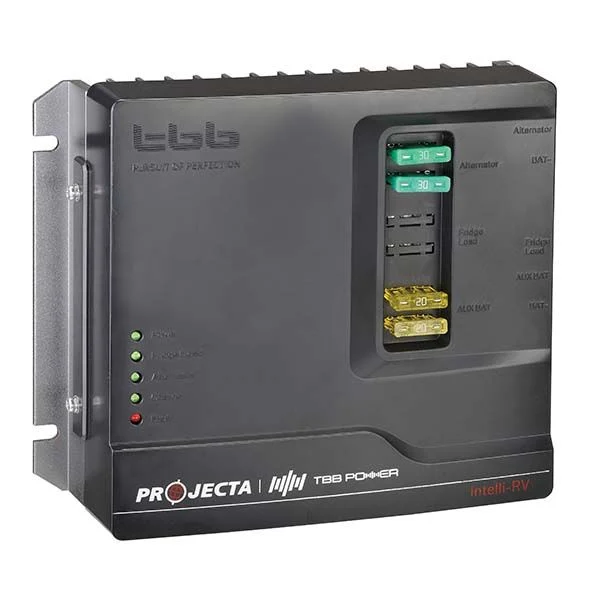

DC-DC 12V CHARGERS
PMDCS30
Smart DC to DC chargers specifically designed for Intelli-RV and Intelli-Grid.Users can choose between 30A or 60A units.
Features
CHARGING TYPE
DC to DC Charging used to compensate for any voltage drop between thealternator and the tow vehicle, optimising charge to the battery
ADAPTIVE INPUT & OUTPUT
Adaptive input adapts to smaller cables or excessive runs without overloadingwiring
MULTI-CHEMISTRY
Adjustable chemistry designed for use on all different types of batteriesincluding Gel, AGM, Wet and Lithium
IGNITION OVERRIDE
Can act as an ignition override for smart alternators
TEMPERATURE COMPENSATION
Temperature compensation to eliminate effects of a change in temperature
5 YEAR WARRANTY
Ensured durability with our 5 year warranty
|
❖Specifications
Brand | Projecta
Part Number | PMDCS30
Charge Type | 5 Stage
Alternator Input Voltage | 12~16V
Output | 12V, <30A
Batteries Supported | Wet, GEL, AGM, Lithium
Alternator Type | Smart & Conventional
Storage Temperature | -40~70°C
Operation Temperature | -40~70°C
Temperature Compensation | -3mV/°C/Cell
IP Rating | IP20
Dimensions | 181 x 148 x 52mm
Weight | 1.0Kg
Cooling | Convection
Smart Aliernator | Turn on 12.2V, Turn off 11.6V
Conventional | Turn on 13.2V, Turn off 12.8V
